Socomec 4829 0145

Supplier Description & Specifications:

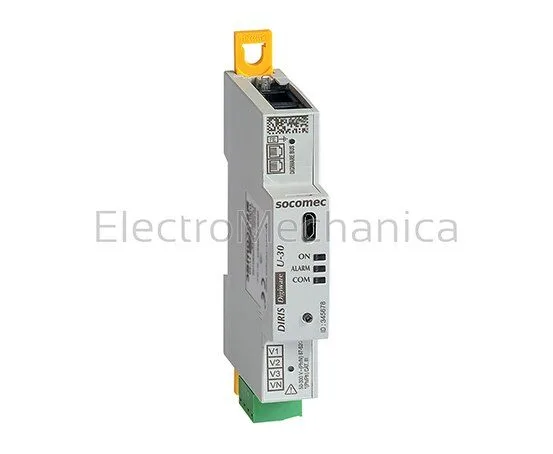

DIRIS Digiware

The DIRIS Digiware is a multi-circuit power monitoring device that is the most effective solution for metering consumption. Measuring and monitoring the quality of electrical energy in industrial and commercial applications.

Features:

• Accuracy as per standard IEC 61557-12 (Class 0.5)
• Implementation in a quarter of the time vs existing metering technologies
• Installation of measurement modules and current sensors at the closest point to the load
• Can monitor several circuits via a single current measurement module thanks to independent current inputs
• Compact and flexible design: suitable for new and existing installations including panels with space restrictions

DIRIS Digiware I/O (input/output modules)

The DIRIS Digiware I/O (input/output) modules can be easily added anywhere within the measurement system thanks to a quick RJ45 connection I/O modules.

The I/O-10 modules have 4 digital inputs and 2 digital outputs, which can be used:

• To monitor changes of status of an input or to collect pulses from multi-fluid meters (water, gas…)
• To remotely command devices by sending a digital output signal
• Inputs/Connection: 12 VDC 3mA, Outputs: 12 – 48 VDC,12 – 24 VAC 50mA / screw terminal blocks

The I/O-20 modules have 2 analogue inputs allowing:

• To collect data from analogue sensors, e.g. pressure, humidity, temperature, levels (fuel…)
• To monitor levels by setting up alarms on chosen thresholds
• Inputs/Connection: 0/4-20 mA, 200 ohm / screw terminal blocks
