Socomec 4825 0502

Supplier Description & Specifications:

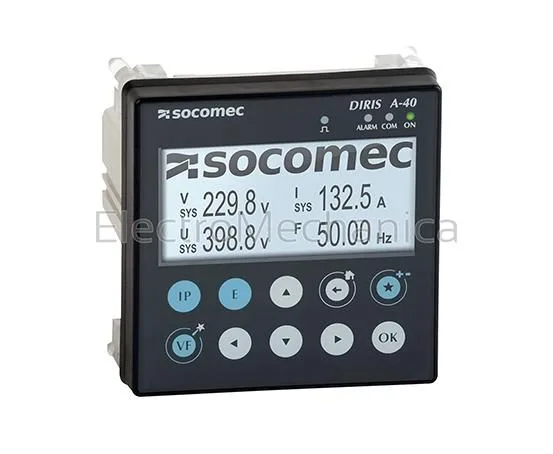

DIRIS A40 (multifunction meter)

The DIRIS A40 is a panel-mounted power monitoring device (PMD) designed for measuring, monitoring and reporting electrical energy. The DIRIS A40 offers a range of functions for measuring voltage, current, power, energy and quality. It allows the analysis of a single-phase or three-phase load. Digital meters with LCD screen.

• Assisted configuration-Wizard guides the user step by step. It also detects and corrects configuration errors.
• Smart sensors- Solid core, split core or Rogowski sensors suited for new or retrofit applications
• Compliant with IEC 61557-12- Reference standard for PMDs (Performance metering & monitoring devices)

SERIES	A40 series
RATED SUPPLY VOLTAGE	110 – 400 VAC
ACTIVE ENERGY	Class 0.5 with TE, TF or iTR. Class 1 with TR sensors
REACTIVE ENERGY	Class 2 with TE, TR or TF sensors
DESCRIPTION	Panel mounted power monitoring device with Profibus DPV1 + MODBUS RS485
COMPLIANT OF STANDARDS	IEC61557-12
INPUTS	3 digital inputs (pulse metering, status checking)
OUTPUT	2 outputs (alarms or pulses)
MODULE WIDTH	92 x 92 ( 68 mm deep)
MOUNTING	Panel mount
